VERTOR ML-1R

Description

Year of manufacture: 2007
Retrofit class: Function tested

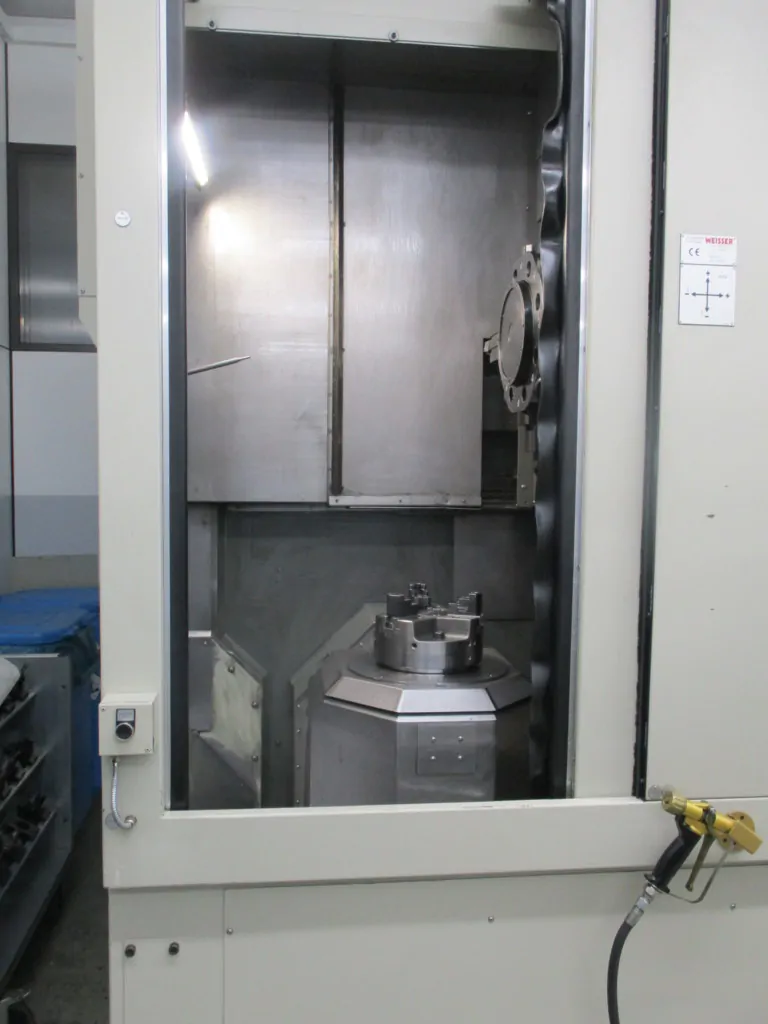

Suitable for the machining of chuck turned parts. Modular, vertical precision lathe with fixed motor spindle.
The VERTOR C is ideal for wet and dry machining of all common rotationally symmetrical workpieces with the highest precision, availability and continuous accuracy.

Technical data

Working/loading space

Chuck size
mm
210
Max. Swing diameter
mm
Ø400
Control Sinumerik 840 DSL
Slide travel X-axis
mm
400
Rapid traverse X axis
m/min
24
Slide travel Z-axis
mm
400
Rapid traverse Z axis
m/min
24
Slide travel Y-axis
mm
11

Motor spindle

Spindle bearing diameter
mm
150
Spindle head according to DIN 55026
size A6
Speed range infinitely variable
rpm
3.000
Torque 100% ED
Nm
450

Tool turret

8-fold disc turret with tool drive
Tool holder
VDI50
DIN 69880
Total connected load
KVA
69
Machine weight
t
10
Length x width x height
m
2,2 x 1,9 x 3,0

Equipment

Cooling lubricant system
3 jaw chuck
Automatic safety door
Chain conveyor
Oil mist extraction

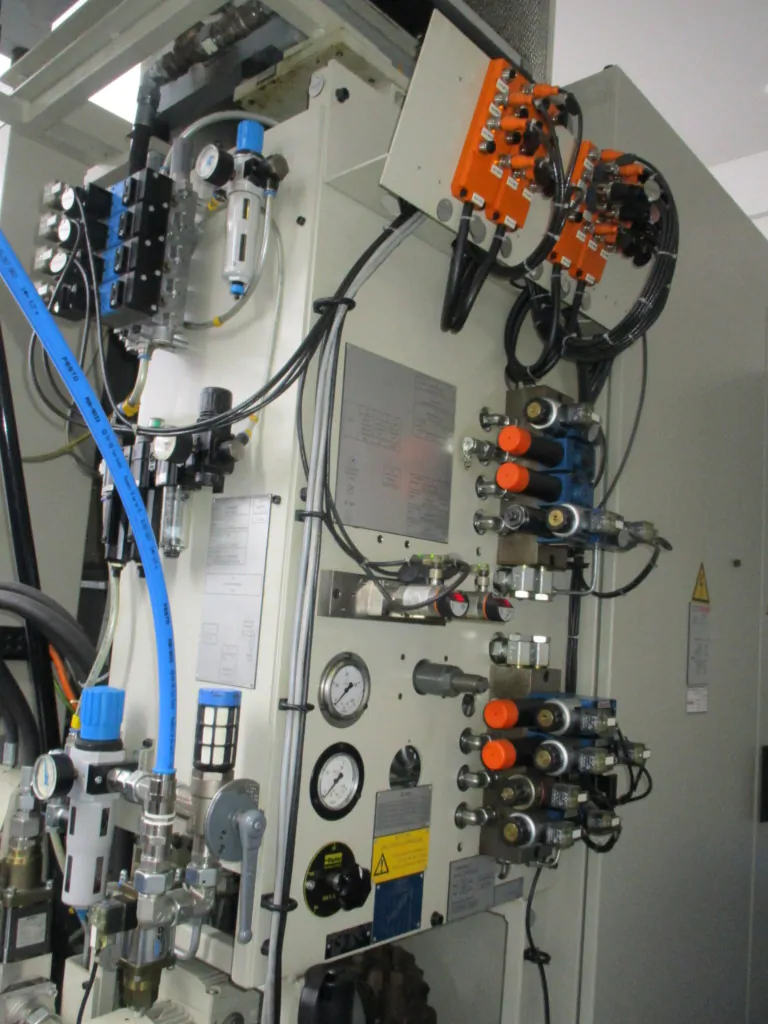

Hydraulic full clamping cylinder OVS 85
Store Turn
