UNIVERTOR AC-1 – demonstration machine

Year of manufacture: 2016

Retrofit class: Function tested

This series is a very fast, multi-functional single-spindle pick-up lathe in modular design with vertical spindle-slide arrangement. The machine is currently directed with a rotary turning unit with drive for 8-position disc turret for use in hard machining.

The machine is a demonstration machine.

Technical data

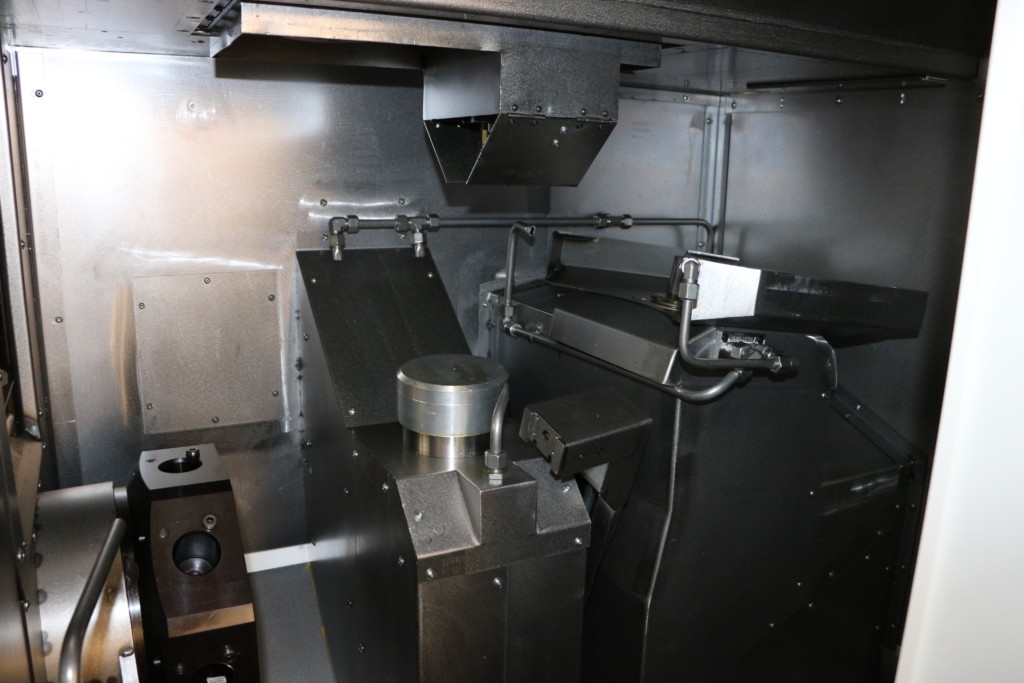

Working/loading space

Max. turning diameter
mm
150
Max. Chuck diameter
mm
210
Max. Tool flying circle
mm
670

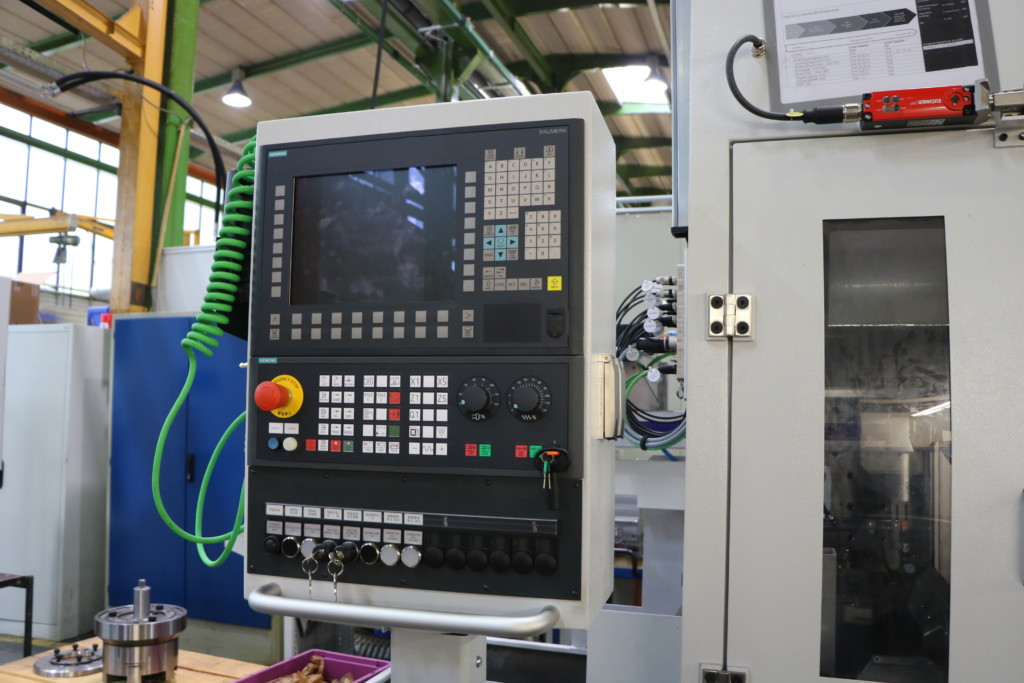

Control Sinumerik 840D sl
Travel -X
mm
830
Rapid traverse X axis
m/min
60
Travel -Z
mm
180
Rapid traverse Z axis
m/min
30

Motor spindle

Spindle bearing diameter
mm
90
Spindle head according to DIN 55026
Size A6
Max. Speed
1/min
4.500

Tool turret

12-station disc turret with tool drive
Tool holder DIN 69880 ISO 10889
Total power requirement
KVA
29
Machine weight
t
8
Length x width x heigh
mm
2.400 x 2.500 x 2.600
Operating hours
h
506

Equipment

Surface dressing unit
External grinding spindle with grinding software
Internal grinding spindle with grinding software
Tool holder D28/43 ( tapping M28x43 )

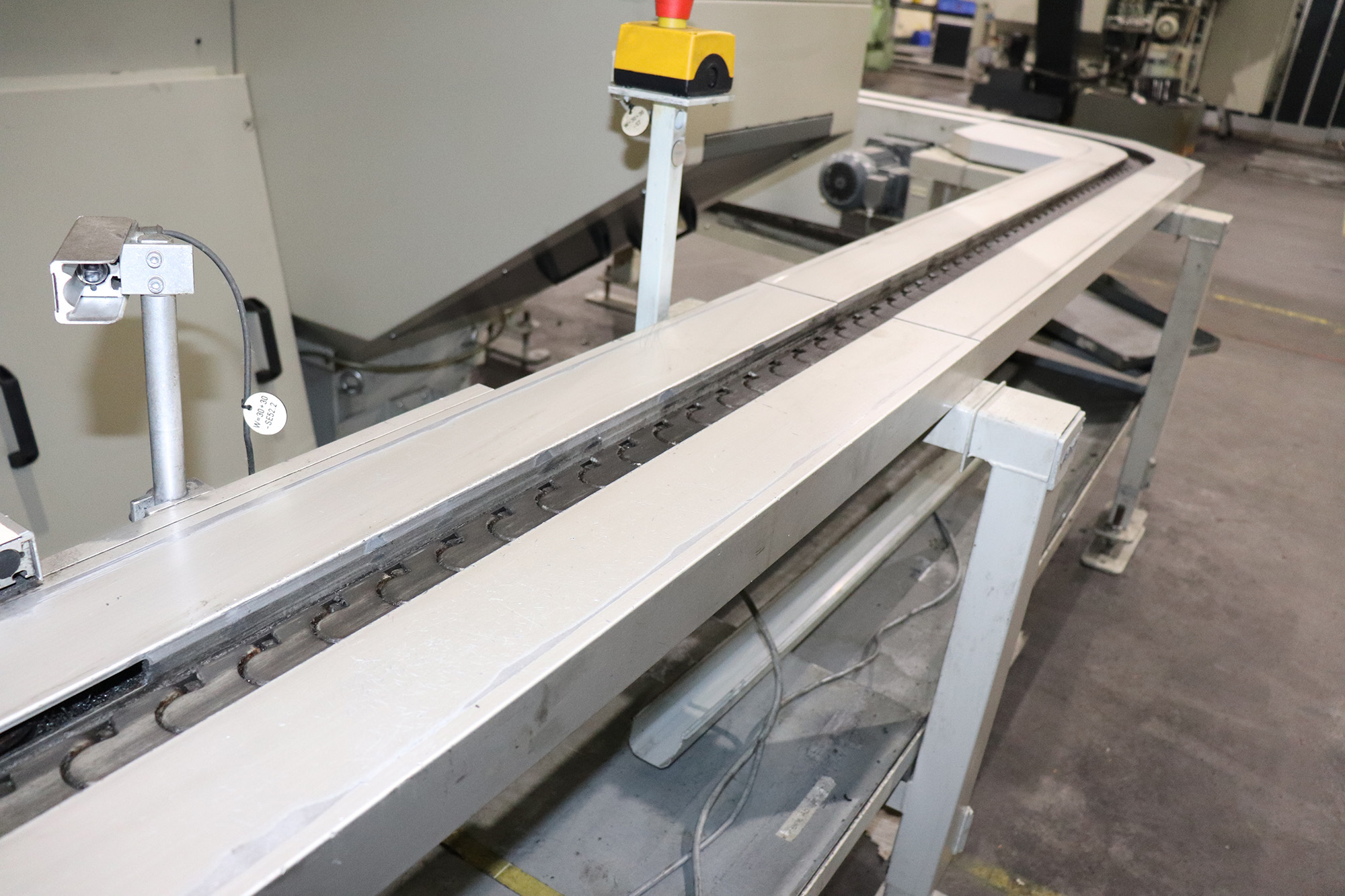

Pallet belt
