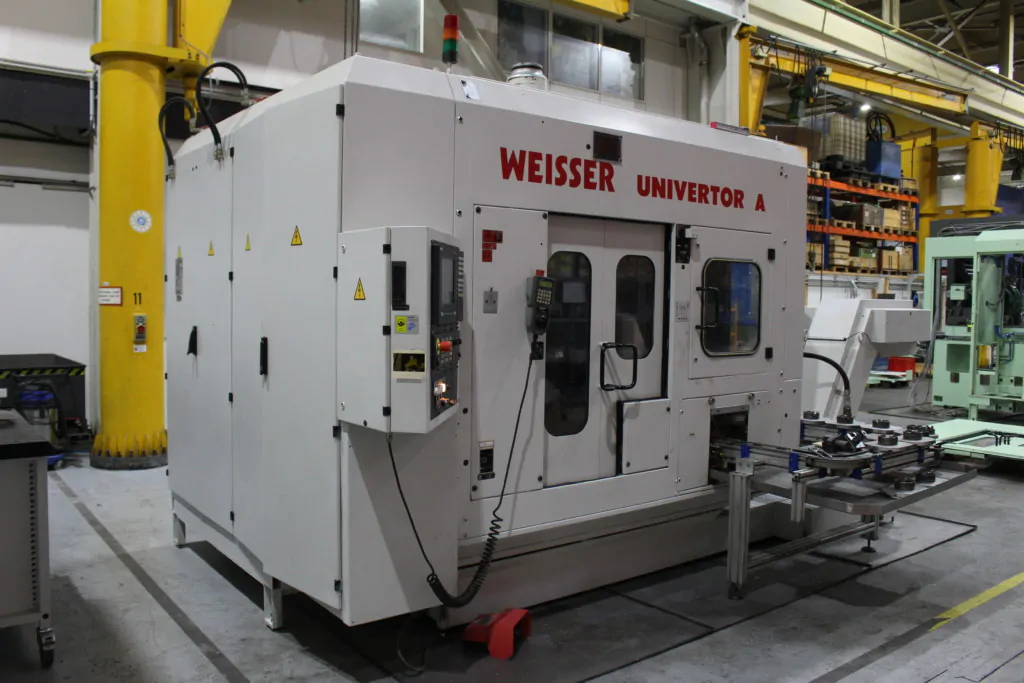

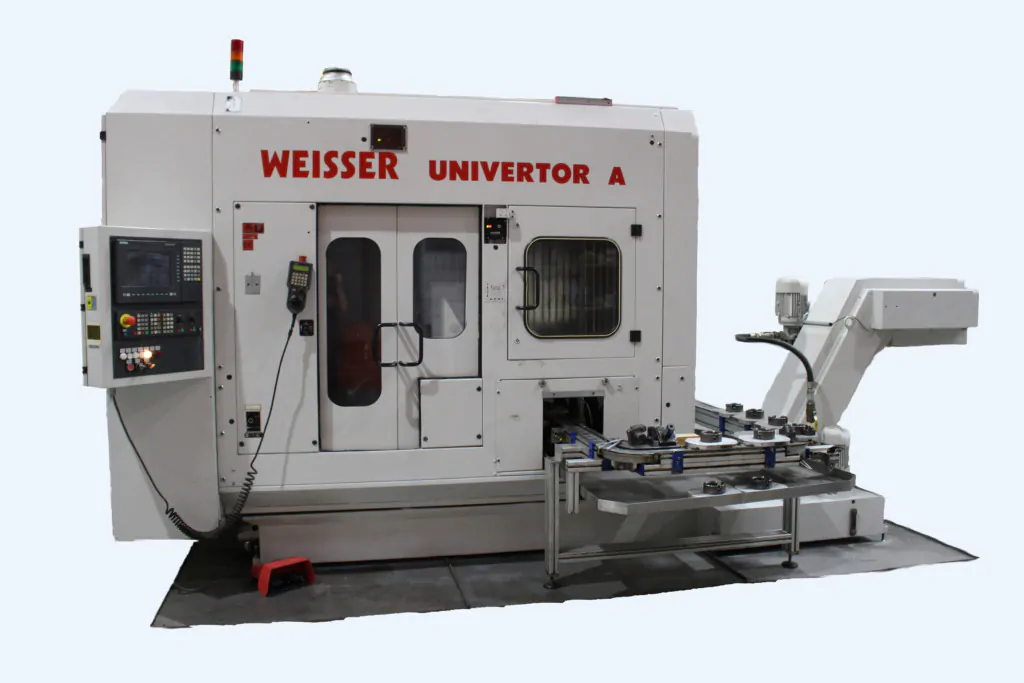

UNIVERTOR A90

Description

Year of manufacture: 2000

Retrofit class: Function tested

Modular single-spindle turning machine with vertical spindle-slide arrangement. The UNIVERTOR A90 is flexibly designed and predestined for piece-cost-efficient complete machining of various batch sizes with high machining and quality requirements. Optionally, the machine can be equipped with different grinding spindles, drilling heads or milling spindles to reduce cycle times.

Technical data

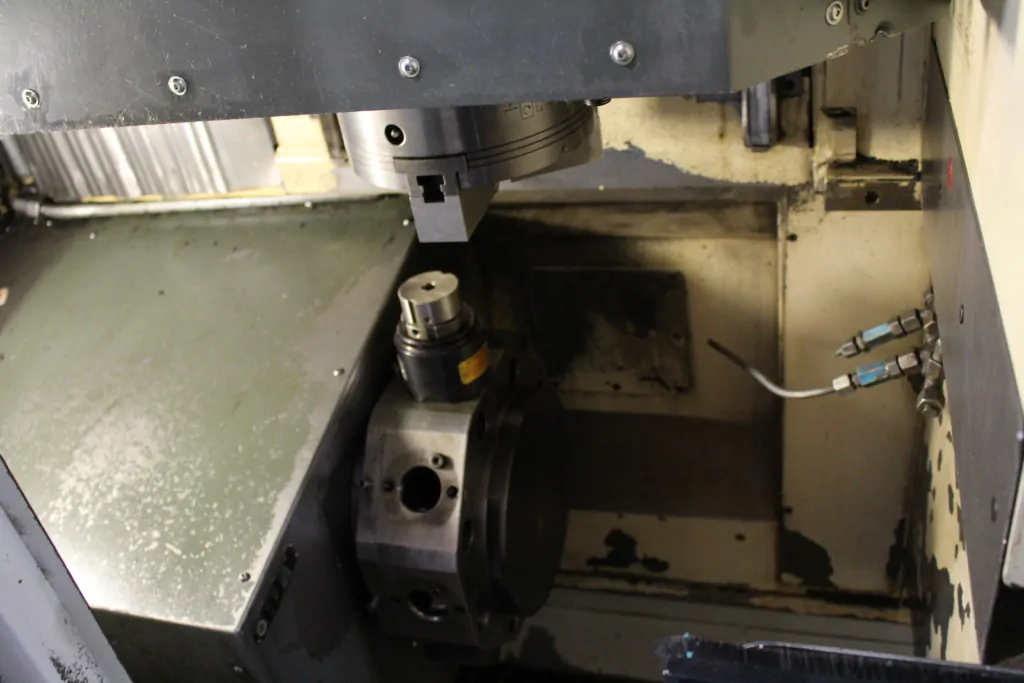

Working / loading space

Max. Clamping diameter
mm
Ø210
Max. Workpiece circumference
mm
Ø350
Control Siemens 840 D
Slide travel X-axis
mm
1.130
Rapid traverse X-axis
m/min
60
Slide travel Z-axis
mm
240
Rapid traverse Z-axis
m/min
30
Slide travel Y-axis
mm
11

Motor spindle

Spindle bearing diameter
mm
90
spindle head according to DIN 55026
size A6
Drive power 100% ED
KW
18
Drive power 40% ED
KW
23
Speed range infinitely variable
rpm
6.000
Torque at 100%
Nm
115
Torque at 40%
Nm
150

Tool turret

8-fold disc turret with tool drive
Tool holder
40H6
DIN 69880
Total connected load
KVA
58
Machine weight
t
11
Length x width x height
m
5,15 x 4,1 x 2,4
Compressed air min
bar
6

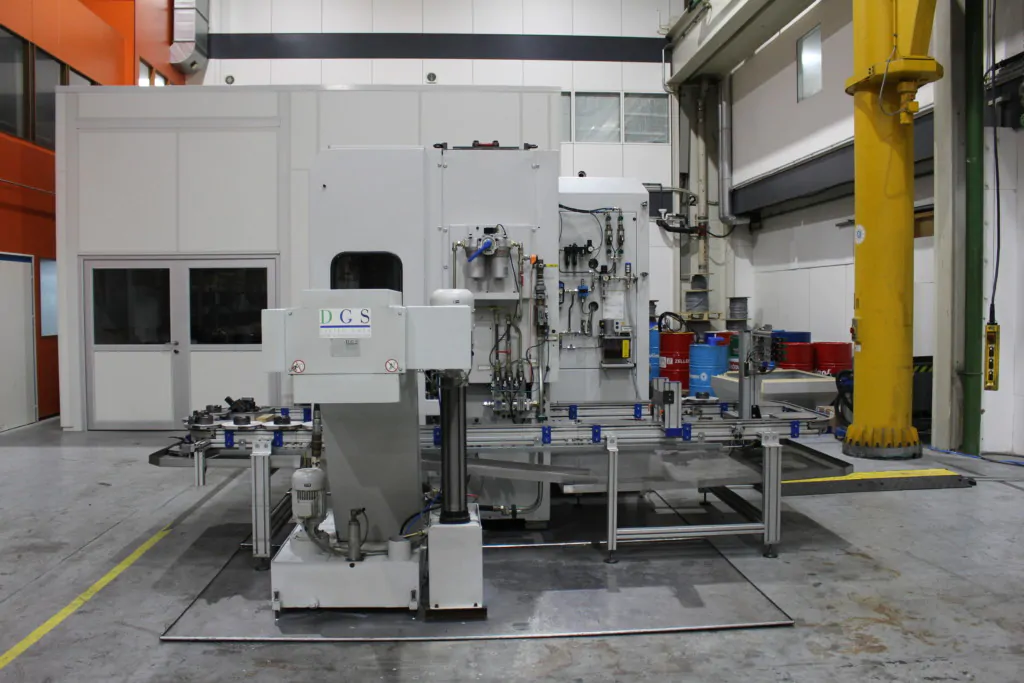

Equipment

Cooling lubricant system
Chain conveyor
Pallet belt
all around
workpiece carrier 15
3 jaw chuck
